Description

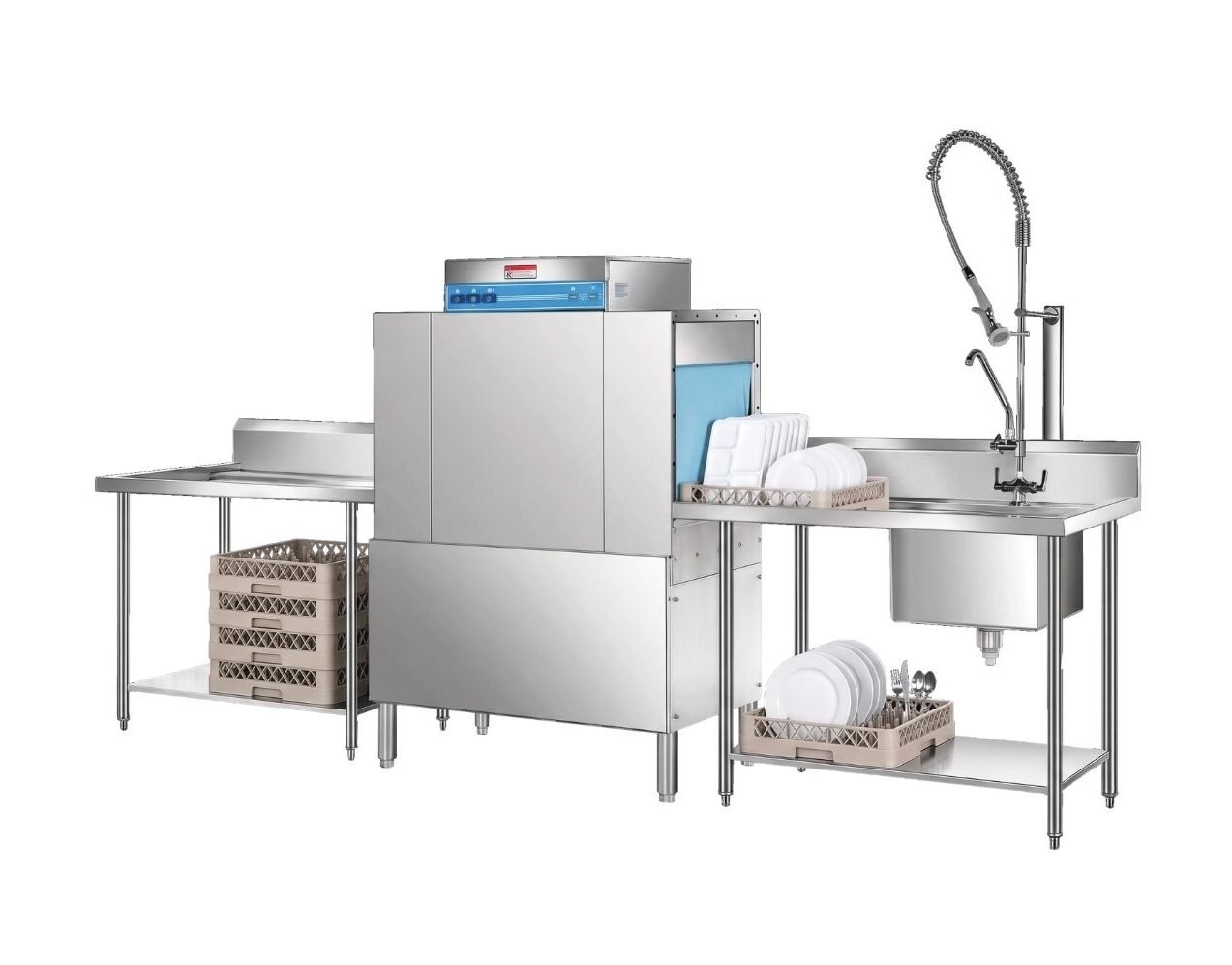

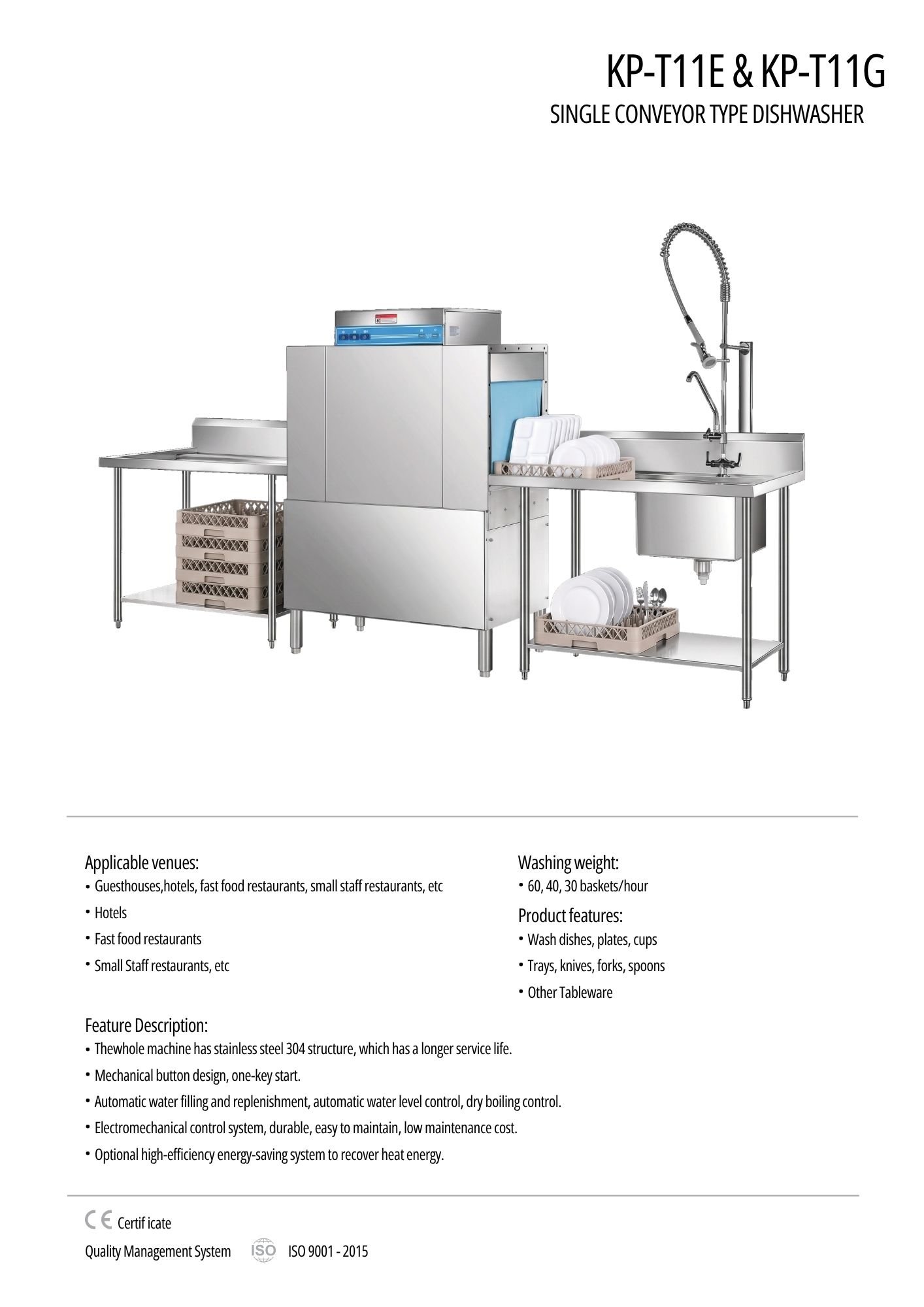

SINGLE CONVEYOR TYPE DISHWASHER
KP-T11E & KP-T11G
Feature Description:
• The whole machine has stainless steel 304 structure, which has a longer service life.
• Mechanical button design, one-key start.
• Automatic water filling and replenishment, automatic water level control, dry boiling control.
• Electromechanical control system, durable, easy to maintain, low maintenance cost.
• Optional high-efficiency energy-saving system to recover heat energy.
Product features:
• Wash dishes, plates, cups
• Trays, knives, forks, spoons
• Other Tableware
Applicable venues:
• Guesthouses, hotels, fast food restaurants, small staff restaurants, etc
• Hotels
• Fast food restaurants
• Small Staff restaurants, etc
Washing weight:
• 60, 40, 30 baskets/hour
Certificate
Quality Management System ISO 9001 – 2015

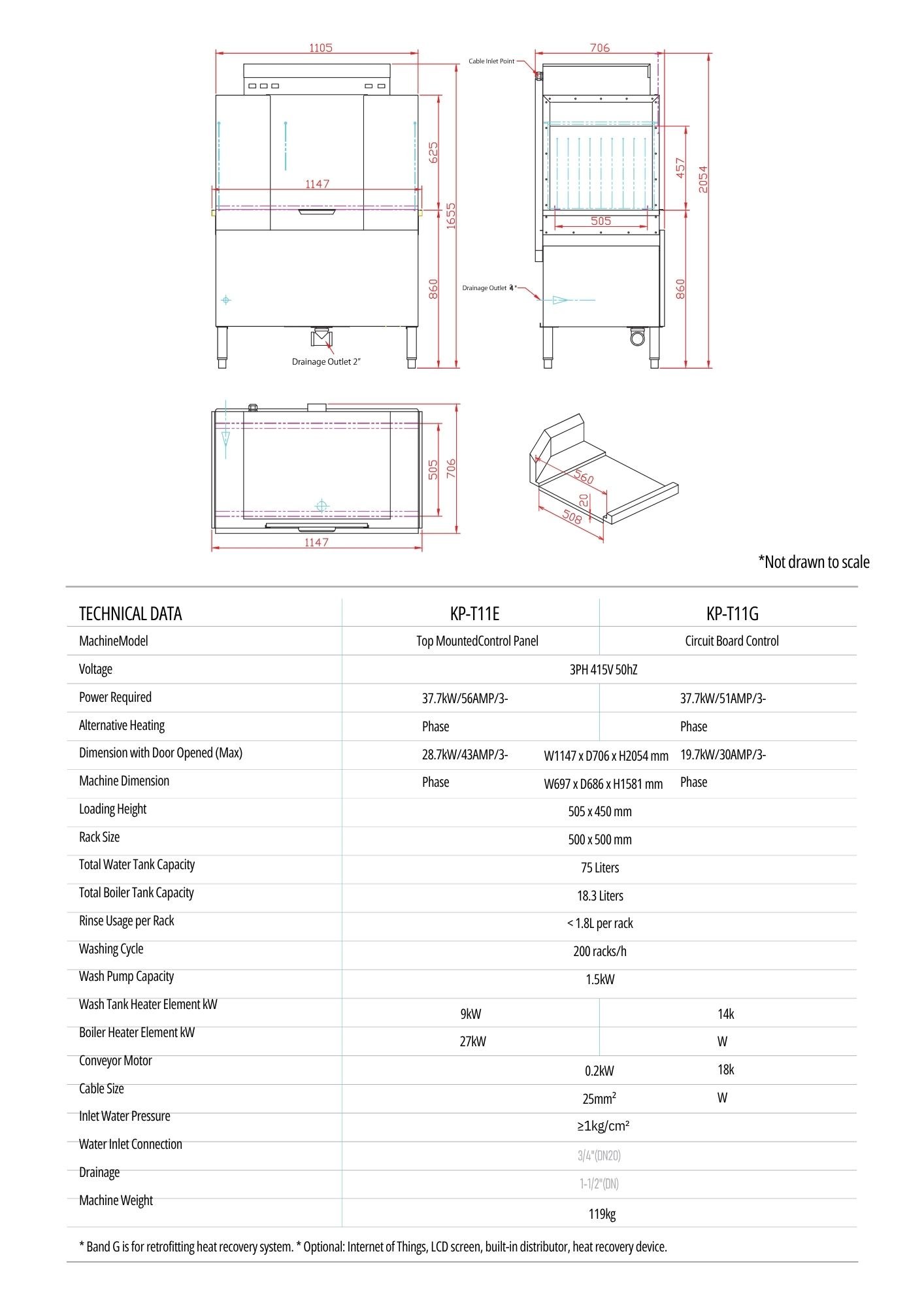

Cable Inlet Point
Drainage Outlet 3
4″
Drainage Outlet 2”
*Not drawn to scale
TECHNICAL DATA
Machine Model
Voltage
Power Required
Alternative Heating
Dimension with Door Opened (Max)
Machine Dimension
Loading Height
Rack Size
Total Water Tank Capacity
Total Boiler Tank Capacity
Rinse Usage per Rack
Washing Cycle
Wash Pump Capacity
Wash Tank Heater Element kW
Boiler Heater Element kW
Conveyor Motor
Cable Size
Inlet Water Pressure
Water Inlet Connection
Drainage
Machine Weight
KP-T11E
Top Mounted Control Panel
3PH 415V 50hZ
37.7kW/56AMP/3-Phase
28.7kW/43AMP/3-Phase
W1147 x D706 x H2054 mm
W697 x D686 x H1581 mm
505 x 450 mm
500 x 500 mm
75 Liters
18.3 Liters
< 1.8L per rack
200 racks/h
1.5kW
9kW
27kW
0.2kW
25mm²
≥1kg/cm²
119kg
KP-T11G
Circuit Board Control
37.7kW/51AMP/3-Phase
19.7kW/30AMP/3-Phase
14kW
18kW
* Band G is for retrofitting heat recovery system. * Optional: Internet of Things, LCD screen, built-in distributor, heat recovery device.
